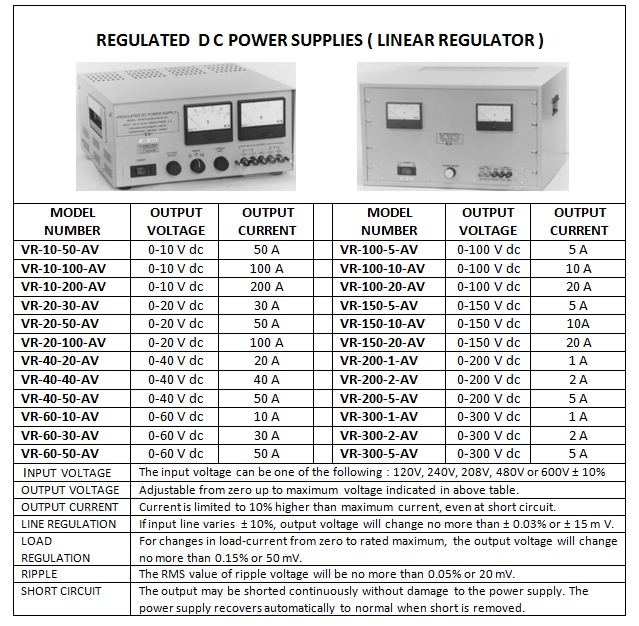

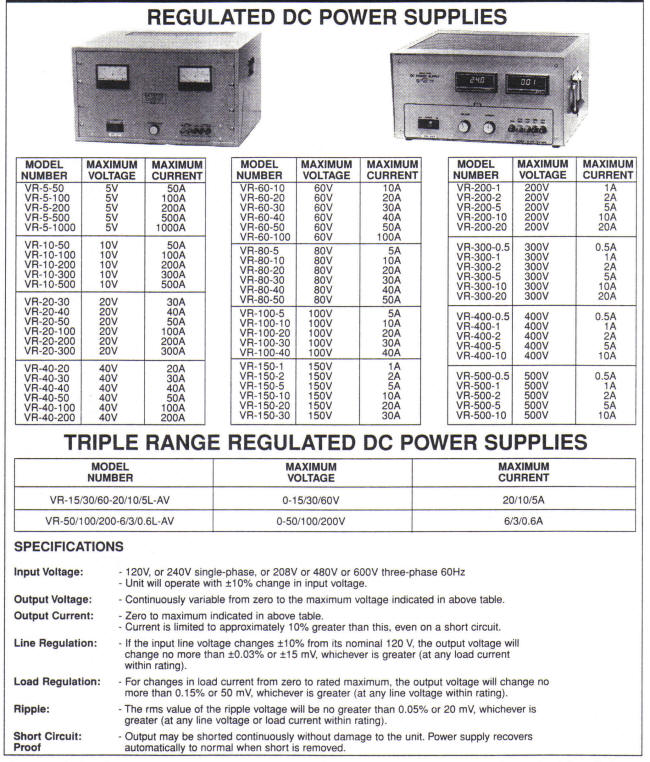

A LARGE VARIETY OF REGULATED D C POWER
SUPPLIES, THAT CAN ALSO BE USED AS HIGH-CURRENT
D C AMPLIFIERS WHEN ORDERED C/W A
PROGRAMMABLE OPTION 0-10 V dc TO CONTROL THE
OUTPUT VOLTAGE FROM ZERO TO MAXIMUM
Made in Canada with 95% Canadian & American parts and components
FOR PRICE & DELIVERY, PLEASE CALL: ( 416 ) 299-6666
OR CALL TOLL FREE IN CANADA & USA ONLY: 1-800-268-6886
A WIDE VARIETY OF UNREGULATED D C POWER
SUPPLIES, IDEAL FOR RUNNING EQUIPMENT WITH
HIGH INRUSH CURRENT, SUCH AS D C MOTORS,
LARGE POWER BREAKERS AND PRODUCT
WITH SIMILAR APPLICATIONS.

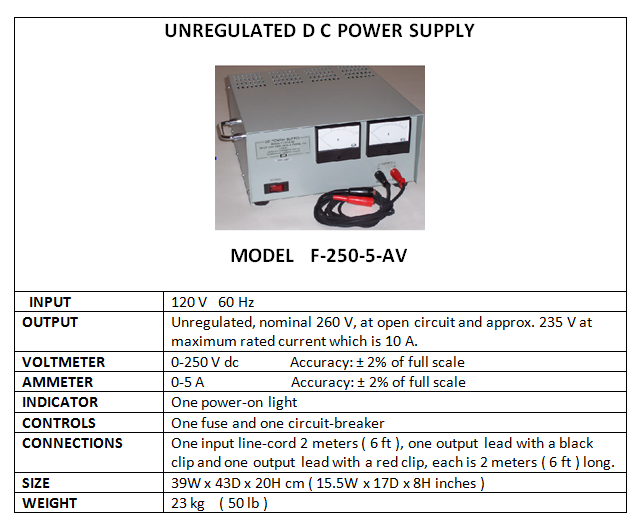

HERE IS ONE SAMPLE OF UNREGULATED
D C POWER SUPPLIES

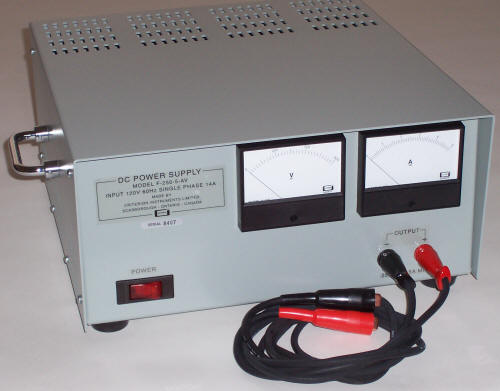

| MODEL F-250-5-AV | SPECIFICATIONS |
| INPUT | 120 V 60 Hz |
| OUTPUT | Unregulated, nominal 260 V, open circuit and approx. 235 V at maximum rated current which is 5 A |
| VOLTMETER | 0-250 V dc accuracy: ± 2% of full scale |
| AMMETER | 0-5 A accuracy: ± 2% of full scale |
| INDICATOR | One power-on light |
| CONTROL | One input circuit-breaker |
| CONNECTIONS | One input line-cord, one output lead with a black clip and one output lead with a red clip, each lead is 2 meters ( 6 ft ) long |
| SIZE | 39W x 43D x 20H cm ( 15.5W x 17D x 8H inches ) |
| WEIGHT | 23 kg ( 50 lb ) |
| FOR PRICE & DELIVERY AND INFORMATION ABOUT OTHER POWER SUPPLIES, PLEASE CALL: ( 416 ) 299-6666 OR CALL TOLL FREE IN CANADA & USA ONLY: 1-800-268-6886 |
